Cloud Configuration - 1.1

Description

This extension provides support for some cloud computing frameworks that are using configuration files for setting up AWS services:

• AWS CloudFormation
• AWS SAM
• Serverless Framework
• Terraform for AWS

In what situation should you install this extension?

If your application uses AWS CloudFormation, AWS SAM, Serverless Framework (for deploying AWS services), or Terraform for AWS.

Transactions

Transaction support is derived from metamodel concepts used to build CAST Imaging Blueprint and structural transaction flows. Entry Points start transactions; Exit Points include both output/boundary concepts and Data Entities manipulated by transactions.

ISO 5055 Structural Rules

Quality support is based on ISO 5055 structural rules available for the selected extension version. Counts are grouped by ISO 5055 characteristic.

Files analyzed

The files with the following extensions are analyzed:

• .json
• .yaml
• .yml
• .template
• .tf

What results can I expect?

Generic objects and links created

This section describes the objects, properties, and links that this extension creates in the CAST model. Each sub-section covers one AWS concept that is supported for at least one of the configuration tools; not every concept is supported for every tool. For the exact resources and syntax recognised by each tool, see the Detailed support per configuration tool section below.

Objects created

The following objects are created regardless of which deployment tool is used.

Icon	Description
	AWS Get API Gateway
	AWS Post API Gateway
	AWS Put API Gateway
	AWS Delete API Gateway
	AWS Any API Gateway
	AWS Post Request
	AWS Lambda Function
	Call to AWS Lambda Function
	AWS Simple Queue Service Receiver
	AWS SNS Subscriber
	AWS Simple Queue Service Publisher
	AWS SMS, AWS Email
	AWS SNS Publisher
	AWS Kinesis Consumer
	AWS Firehose Stream Delivery
	AWS S3 Bucket

Lambda Function

An AWS Lambda Function object is created for each AWS Lambda defined in the configuration.

Link to the handler

The Lambda Function carries three properties that identify its handler:

• CAST_AWS_WithHandler.runtime — the Lambda runtime (e.g. nodejs20.x, python3.12)
• CAST_AWS_WithHandler.handler — the raw handler value as written in the configuration (e.g. handler.compute or index.handler)
• CAST_AWS_WithHandler.path_to_handler — a hint about the likely location of the handler source code; derived from CodeUri (CloudFormation/SAM), the source directory (Serverless), or the filename/archive_file (Terraform). Not set for Java or .NET runtimes, where the handler is a fully-qualified class name that is sufficient for locating the handler.

The link from the Lambda Function to the actual handler function is resolved by one of the following extensions depending on the runtime:

Note: For Java and .NET runtimes the handler value is a fully-qualified class name, which is sufficient to locate the handler regardless of the deployment package structure. For all other runtimes (Python, Node.js, …) the handler source code is typically distributed as a ZIP file or via an S3 bucket. Even when the source code is present in the analysis, the configuration often only expose the path to the deployment package (e.g. lambda.zip) rather than the path to the actual source files, causing path_to_handler to point to the wrong location and the link to the handler function to fail.

Lambda triggers

When configuring a lambda function, it is possible to set up automatic triggers. The following trigger types are supported as follow:

SQS queue — an SQS Receiver object is created and linked to the Lambda Function.

SNS topic — an SNS Subscriber object is created and linked to the Lambda Function.

API Gateway — an API Gateway object GET, POST, PUT, DELETE, or is created. The linking behaviour depends on how many API Gateway triggers the Lambda has:

S3 bucket — see S3 bucket events.

DynamoDB stream — no standalone trigger object is created. Instead, the table name is stored as the CAST_AWS_Lambda.dynamodb_events property on the Lambda Function. This property is then used by com.castsoftware.wbslinker to create a callLink from any callable that carries a CRUD operation on that dynamodb table to the lambda function.

SNS subscriptions

When an SNS topic has subscriptions, an SNS Subscriber object is created named as the topic. A callLink is drawn from the SNS Subscriber to a downstream object for each subscription:

Protocol	Object created	Icon	Name of the object
email	AWS Email		an email (the email addresses are not evaluated)
http / https	AWS Post Request		the URL (evaluated from the endpoint)
sqs	AWS SQS Publisher		the name of the queue (evaluated from the endpoint)
lambda	AWS Lambda Call		the name of the lambda function (evaluated from the endpoint)
sms	AWS SMS		an SMS (the SMS numbers are not evaluated)

Whenever the endpoint is an ARN, the ARN may be hardcoded:

- Protocol: sqs
  Endpoint: arn:aws:sqs:us-east-2:123456789012:my_queue_name

The name of the service (my_queue_name in this example) is extracted from the ARN.

S3 bucket events

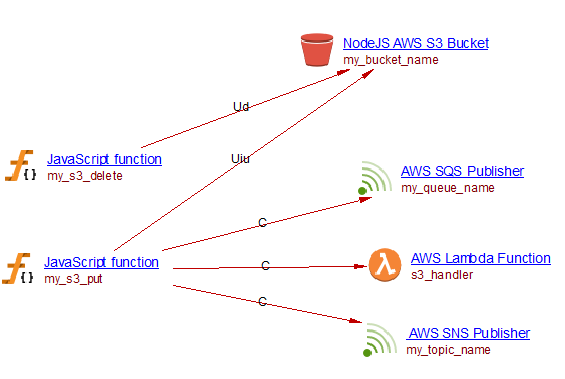

S3 bucket events can target a Lambda Function directly, an SQS queue, or an SNS topic. In all three cases no standalone trigger object is created; instead, the bucket name and event type are recorded on the target object and cross-technology linkers use the event type to create callLinks from the right S3 callers:

In AWS, the event_type can be more specific by adding information after the semicolon. However, the analyzer does not consider this information. For instance, it will make no distinction between ObjectCreated:* and ObjectCreated:Put or ObjectCreated:Post event types. A Filter field can also be added to trigger the lambda only for some specific files. This is currently not supported and may lead to wrong links. The links from S3Bucket callers to the lambda object will be created only if the extension which created the S3 bucket is recent enough as described below.

Depending on the configured target:

• Lambda Function — the S3 event is stored as the CAST_AWS_Lambda.s3_events property on the Lambda Function. No new object is created.
• SQS queue — an SQS Publisher object is created for the referenced queue. The S3 bucket is recorded as the publisher’s source.
• SNS topic — an SNS Publisher object is created for the referenced topic. The S3 bucket is recorded as the publisher’s source.

Detailed support per configuration tool

CloudFormation

Cloudformation uses configuration files for setting up AWS architecture. The configuration files use yaml or json format. Most examples shown in this section are using the yaml format but json format is also supported. Resources are defined within the Resources section of the configuration files. Each resource is defined as follow:

Resources:
  NameOfTheResource:
    Type: AWS::ResourceIdentifier
    Properties:
       SomeProperty:
         #...
  NameOfOtherResource:
    #...

The resources of the following types are analyzed:

AWS::Lambda::Function

When analysing the following source code:

Resources:
  lambdaResourceName:
    Type: AWS::Lambda::Function
    Properties:
      FunctionName: lambdaName
      Handler: handler.compute
      Runtime: nodejs8.10

A Lambda Function object named lambdaName is created. See Link to the handler for how the handler properties are handled.

If the property FunctionName is not provided, the name of the function is by default the name of the resource (lambdaResourceName in this example).

AWS::DynamoDB::Table, AWS::SQS::Queue, and AWS::S3::Bucket

These types of resources are used to set up some services. This extension analyses them to get the name of the services. For instance when analyzing the following:

Resources:
  SQSResourceName:
    Type: AWS::SQS::Queue
    Properties:
        QueueName: QueueName
        #...

the analyzer will find that any reference to the resource SQSResourceName will refer to the SQS Queue named QueueName. If no name is provided, the resource name is used.

AWS::SNS::Topic

This resource is used to set up an SNS topic with its subscription. When analyzing the following source code:

Resources:
 Queue:
   Type: AWS::SQS::Queue
   Properties:
      QueueName: my_queue_name
 LambdaFunction:
   Type: AWS::Lambda::Function
   Properties:
      FunctionName: my_lambda_name
      Handler: handler.compute
      Runtime: nodejs8.10
 MySNSTopic:
   Type: AWS::SNS::Topic
   Properties:
     Subscription:
       - Endpoint: cloudkatha@gmail.com
         Protocol: email
       - Endpoint: some_number
         Protocol: sms
       - Protocol: https
         Endpoint: foo/https
       - Protocol: http
         Endpoint: foo/http
       - Protocol: lambda
         Endpoint: !GetAtt LambdaFunction.Arn
       - Protocol: sqs
         Endpoint: !GetAtt Queue.Arn
     TopicName: my_topic_name

you will get the following result:

An SNS Subscriber object named my_topic_name is created. For the full list of supported protocols and objects created, see SNS subscriptions.

AWS::SNS::Subscription

The subscriptions to an SNS topic can be made inside an AWS::SNS::Subscription resource. When analyzing the following source code,

Resources:
  SnsTopic:
    Type: AWS::SNS::Topic
    Properties:
        TopicName: my_topic_name
  Queue:
    Type: AWS::SQS::Queue
    Properties:
      QueueName: my_queue_name
  SnsSubscription:
    Type: AWS::SNS::Subscription
    Properties:
      Protocol: sqs
      Endpoint: !GetAtt Queue.Arn
      Region: !Ref TopicRegion
      TopicArn: !GetAtt SnsTopic.Arn

you will get the following result:

The same endpoints as those for the AWS::SNS::Topic resource are supported.

AWS::Lambda::EventSourceMapping

CloudFormation allows setting up triggers for lambda functions using AWS::Lambda::EventSourceMapping. When these events occur, the lambda function will be executed. The supported event sources are DynamoDB, SQS, and Kinesis Data Streams. For a Kinesis trigger, both !GetAtt resource references and hardcoded ARNs (arn:aws:kinesis:region:account:stream/stream-name) are supported; in the latter case the stream name is extracted from the ARN.

The analysis of the following source code:

Resources:
  DataResourceTable:
    Type: AWS::DynamoDB::Table
    Properties:
      TableName: my_table_name
      # ...

  SQSResourceName:
    Type: AWS::SQS::Queue
    Properties:
      QueueName: my_queue_name
      #...

  lambdaResourceName:
    Type: AWS::Lambda::Function
    Properties:
      FunctionName: my_lambda_name
      Handler: handler.compute
      Runtime: nodejs8.10

  SQSToLambdaEventSourceMapping:
    Type: AWS::Lambda::EventSourceMapping
    Properties:
      EventSourceArn: !GetAtt SQSResourceName.Arn
      FunctionName: !GetAtt lambdaResourceName.Arn
      #...

  DynamodbToLambdaEventSourceMapping:
    Type: AWS::Lambda::EventSourceMapping
    Properties:
      EventSourceArn: !GetAtt DataResourceTable.StreamArn
      FunctionName: !GetAtt lambdaResourceName.Arn
      #...

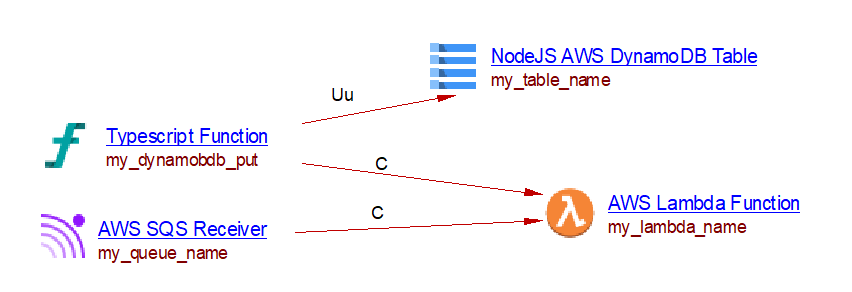

Lead to the following result (assuming that there is some TypeScript source code with a my_put function with a useUpdateLink to a my_table_name DynamoDB table):

For an SQS event to Lambda, an SQS Receiver object is created with a direct callLink to the Lambda Function object.

For a Kinesis event to Lambda, a Kinesis Consumer object is created with a direct callLink to the Lambda Function object.

AWS::Kinesis::Stream

Resources:
  MyStream:
    Type: AWS::Kinesis::Stream
    Properties:
      Name: my-stream-name
      ShardCount: 2

A Kinesis Consumer object named my-stream-name is created. If Name is not provided the resource name is used.

The stream can be referenced from an AWS::Lambda::EventSourceMapping (via !GetAtt MyStream.Arn) and from an AWS::KinesisFirehose::DeliveryStream (via KinesisStreamSourceConfiguration).

AWS::KinesisFirehose::DeliveryStream

A Firehose Stream Delivery object is created for each delivery stream. The following configurations are analysed:

Lambda processor — when any destination configuration block contains a ProcessingConfiguration with a Type: Lambda processor and a LambdaArn parameter, a Call to AWS Lambda Function child object is created under the Firehose Stream Delivery and a callLink is drawn from the delivery stream to that object.

S3 destination — when a destination configuration block contains a BucketARN that references an AWS::S3::Bucket resource, an AWS S3 Bucket object is created and a useInsertLink is drawn from the delivery stream to it.

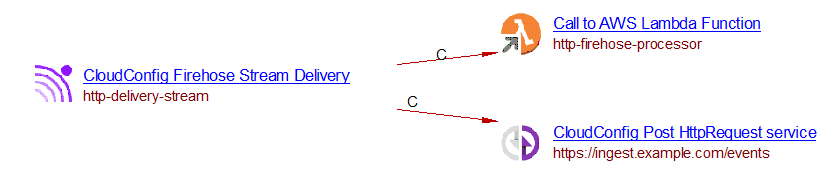

HTTP endpoint destination — when HttpEndpointDestinationConfiguration.EndpointConfiguration.Url is set, an AWS Post Request object is created named after the URL. Its CAST_ResourceService.uri property is set to the URL and a callLink is drawn from the delivery stream to it.

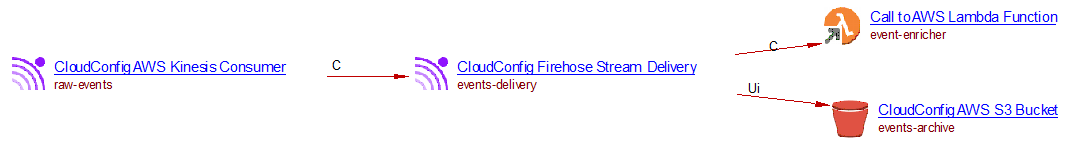

Kinesis stream as source — when KinesisStreamSourceConfiguration.KinesisStreamARN references an AWS::Kinesis::Stream resource, a Kinesis Consumer object is created and a callLink is drawn from the Kinesis Consumer to the Firehose Stream Delivery.

For example, when analyzing the following source code:

Resources:
  MyTransformer:
    Type: AWS::Lambda::Function
    Properties:
      FunctionName: my-transformer
      Handler: index.handler
      Runtime: python3.12
      Role: arn:aws:iam::123456789012:role/my-role

  MyDeliveryStream:
    Type: AWS::KinesisFirehose::DeliveryStream
    Properties:
      DeliveryStreamName: my-delivery-stream
      DeliveryStreamType: DirectPut
      HttpEndpointDestinationConfiguration:
        EndpointConfiguration:
          Url: https://ingest.example.com/v1/data
          Name: MyEndpoint
        RoleARN: arn:aws:iam::123456789012:role/firehose-role
        ProcessingConfiguration:
          Enabled: true
          Processors:
            - Type: Lambda
              Parameters:
                - ParameterName: LambdaArn
                  ParameterValue: !GetAtt MyTransformer.Arn

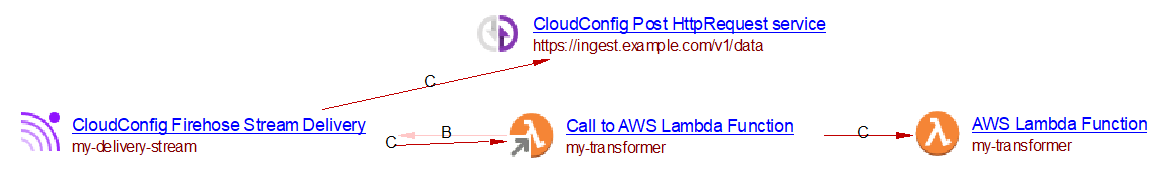

This produces:

• a Firehose Stream Delivery object named my-delivery-stream with:
  • a callLink to a Call to AWS Lambda Function child object named my-transformer
  • a callLink to an AWS Post Request object named https://ingest.example.com/v1/data

Parameters

Some variables can be defined in the parameter section of the yaml file. When the name of a service is that of a parameter and a default value is given, the extension will create the service with that default value. For instance when analyzing the following source code, a lambda function named my_lambda_name is created.

Parameters:

  LambdaName:
    Type: String
    Default: my_lambda_name

Resources:
  lambdaResourceName:
    Type: AWS::Lambda::Function
    Properties:
      FunctionName: !Ref LambdaName
      Handler: handler.compute
      Runtime: nodejs8.10

Intrinsic functions

CloudFormation provides some intrinsic functions. Only the Join, GetAtt, and Ref functions are supported.

SAM (Serverless Application Model)

AWS SAM is an extension of AWS CloudFormation. All that is supported for CloudFormation is supported for SAM. It provides other Types for declaring resources. The following SAM resources are supported:

AWS::Serverless::Function

This resource allows defining a lambda function. It has an Events property which allows setting up some triggers for the lambda function. The supported events types are S3, DynamoDB, SNS, SQS, HttpApi, and Kinesis. When analyzing the following source code (in combination with some JavaScript and TypeScript source code which we do not display here):

Resources:
  MyLambdaResource:
    Type: 'AWS::Serverless::Function'
    Properties:
      FunctionName: my_lambda
      Handler: handler.compute
      Runtime: nodejs4.3
      Events:
        S3Event:
          Type: S3
          Properties:
            Bucket:
              Ref: S3Bucket
            Events:
              - s3:ObjectCreated:*
        Stream:
          Type: DynamoDB
          Properties:
            Stream: !GetAtt DynamoDBTable.StreamArn
            BatchSize: 100
            StartingPosition: TRIM_HORIZON
        SNSEvent:
          Type: SNS
          Properties:
            Topic:
              Ref: SNSTopic1
        MySQSEvent:
          Type: SQS
          Properties:
            Queue: !GetAtt MySqsQueue.Arn
            BatchSize: 10
        MyHttpEvent:
          Type: HttpApi
          Properties:
            ApiId: !Ref HttpApi
            Path: /foo/path
            Method: GET

  MySqsQueue:
    Type: AWS::SQS::Queue
    Properties:
      QueueName: my_queue_name

  DynamoDBTable:
    Type: AWS::DynamoDB::Table
    Properties:
      TableName: my_table_name

  S3Bucket:
    Type: AWS::S3::Bucket
    Properties:
      BucketName: my_bucket_name

  SNSTopic1:
    Type: 'AWS::SNS::Topic'
    Properties:
      TopicName: 'my_topic_name'

We get the following result:

Only the objects in the red square are created when analyzing this source code with this extension. The SQS Receiver and SNS Subscriber objects are linked to the Lambda Function with a direct callLink. For API Gateway linking behaviour see Lambda triggers.

Support for S3 event

See Lambda triggers for the event type to link type mapping that applies to S3 triggers.

Support for DynamoDB event

The analyzer creates a call link to the lambda function object from all callables linked to the DynamoDB table define in the event.

Support for SNS, SQS, HttpApi, and Kinesis events

For these triggers the following objects are created:

• SNS → an SNS Subscriber object, linked to the Lambda Function with a callLink
• SQS → an SQS Receiver object, linked to the Lambda Function with a callLink
• HttpApi → an API Gateway object
• Kinesis → a Kinesis Consumer object, linked to the Lambda Function with a callLink. The Stream property can be a !GetAtt resource reference or a hardcoded ARN (arn:aws:kinesis:region:account:stream/name); in the latter case the stream name is extracted from the ARN.

For API Gateway linking behaviour, see Lambda triggers.

Serverless Framework

Serverless framework can be used to build AWS applications. It provides its own way of defining lambda functions and their events. Other services can be created within the Resources section of the configuration files and using the CloudFormation nomenclature. The com.castsoftware.cloudformation extension analyzes anything which is inside the Resources section of a serverless framework configuration file as CloudFormation resources and will create objects as described in the CloudFormation section above.

Lambda support

The Lambda support is similar to that for SAM. When analyzing the following source code (in combination with some JavaScript and TypeScript source code which we do not display here).

service: irp-searchCompanies
provider:
  name: aws
  runtime: nodejs4.3
  profile: serverless #user profile used for sls deploy
  versionFunctions: false
  region: us-west-2

functions:
  my_lambda:
    handler: handler.compute
    events:
      - stream: arn:aws:dynamodb:region:XXXXXX:table/my_table_name/stream/1970-01-01T00:00:00.000
      - sns:
         arn:
          Fn::GetAtt:
            - SNSTopic1
            - Arn
      - http: GET foo/path
      - s3:
          bucket: my_bucket_name  #bucket name
          event: s3:ObjectCreated:*
          rules:
            - prefix: logs/ #folder inside a bucket
          existing: true #mark as true if bucket already exists
      - sqs:
          arn:
            Fn::GetAtt:
              - MyQueue
              - Arn

resources:
 Resources:
  SNSTopic1:
    Type: 'AWS::SNS::Topic'
    Properties:
      TopicName: 'my_topic_name'
  MyQueue:
    Type: "AWS::SQS::Queue"
    Properties:
      QueueName: "my_queue_name"

We get the following result:

Only the objects in the red square are created when analyzing this source code with this extension. The SQS Receiver and SNS Subscriber objects are linked to the Lambda Function with a direct callLink. The API Gateway (http: GET foo/path) is also linked with a direct callLink because there is only one API Gateway trigger on this Lambda (see Lambda triggers).

Terraform

This extension analyses Terraform .tf files (HashiCorp Configuration Language). Supported versions of Terraform are:

Resources are declared using resource blocks:

resource "aws_resource_type" "logical_name" {
  attribute = value
}

Cross-resource references use the syntax aws_resource_type.logical_name.attribute (e.g. aws_sqs_queue.my_queue.arn). The extension resolves these references when building links between objects.

The resources of the following types are analyzed:

aws_lambda_function

resource "aws_lambda_function" "my_fn" {
  function_name = "my_lambda_name"
  handler       = "index.handler"
  runtime       = "nodejs20.x"
  filename      = "lambda.zip"
  source_code_hash = filebase64sha256("lambda.zip")
  role          = aws_iam_role.lambda_role.arn
}

A Lambda Function object named my_lambda_name is created. Handler properties (handler, runtime, path_to_handler) are set as described in Link to the handler. The path_to_handler is derived from the filename attribute (the directory of the .zip file, or the source_dir of a referenced archive_file data source). Not set for Java or .NET runtimes.

If function_name is not provided the Terraform logical name (my_fn) is used as the object name.

aws_sqs_queue

resource "aws_sqs_queue" "my_queue" {
  name = "my_queue_name"
}

The queue name is recorded and used to resolve references from event source mappings and SNS subscriptions. If name is omitted the logical name is used.

aws_sns_topic

resource "aws_sns_topic" "my_topic" {
  name = "my_topic_name"
}

The topic name is recorded and used to resolve references from SNS subscriptions.

aws_dynamodb_table

resource "aws_dynamodb_table" "my_table" {
  name           = "my_table_name"
  stream_enabled = true
  stream_view_type = "NEW_AND_OLD_IMAGES"
}

The table name (and its stream ARN) is recorded and used when an aws_lambda_event_source_mapping references this table’s stream.

aws_s3_bucket

resource "aws_s3_bucket" "my_bucket" {
  bucket = "my_bucket_name"
}

The bucket name is recorded and used when an aws_s3_bucket_notification links the bucket to a Lambda, SQS queue, or SNS topic, and when an aws_kinesis_firehose_delivery_stream references the bucket as its destination (in which case an AWS S3 Bucket object is created and linked via useInsertLink).

aws_kinesis_stream

resource "aws_kinesis_stream" "my_stream" {
  name        = "my_stream_name"
  shard_count = 2
}

A Kinesis Consumer object named my_stream_name is created. If name is omitted the Terraform logical name is used.

If a Kinesis Publisher with a matching name is found, com.castsoftware.wbslinker creates a callLink from the Kinesis Publisher to the Kinesis Consumer.

The stream object is used when an aws_lambda_event_source_mapping references this stream’s ARN (see aws_lambda_event_source_mapping). It can also be used as the source for an aws_kinesis_firehose_delivery_stream (see aws_kinesis_firehose_delivery_stream).

aws_kinesis_firehose_delivery_stream

resource "aws_kinesis_firehose_delivery_stream" "my_stream" {
  name        = "my_delivery_stream"
  destination = "extended_s3"
  # ...
}

A Firehose Stream Delivery object named my_delivery_stream is created. If name is omitted the Terraform logical name is used.

If a Firehose Producer is found with a name that matches that of the Firehose Stream Delivery com.castsoftware.wbslinker links the Firehose Producer with the Firehose Stream Delivery

The following configurations inside the delivery stream resource are analysed to create links and relevant objects:

Lambda processor

When a destination configuration block (extended_s3_configuration, s3_configuration, http_endpoint_configuration, etc.) contains a processing_configuration block with a processor of type = "Lambda" and a LambdaArn parameter, a Call to AWS Lambda Function child object is created under the Firehose Stream Delivery and a callLink is drawn from the delivery stream to that object.

S3 destination (extended_s3_configuration)

When an extended_s3_configuration block (or any other destination block such as s3_configuration, redshift_configuration, etc.) contains a bucket_arn attribute that references an aws_s3_bucket resource, an AWS S3 Bucket object is created for that bucket and a useInsertLink is drawn from the delivery stream to it.

HTTP endpoint destination

When the destination is an ‘http_endpoint’ and the http_endpoint_configuration block contains a url attribute, an AWS Post Request object is created named after the URL. Its CAST_ResourceService.uri property is set to the URL and a callLink is drawn from the delivery stream to it.

Kinesis stream as source

When a kinesis_source_configuration block references an aws_kinesis_stream resource, a Kinesis Consumer object is created for that stream and a callLink is drawn from the Kinesis Consumer to the Firehose Stream Delivery.

Example — Firehose with an HTTP endpoint destination and a Lambda processor

resource "aws_lambda_function" "processor" {
  function_name = "http-firehose-processor"
  runtime       = "python3.11"
  handler       = "handler.main"
  role          = "arn:aws:iam::123456789012:role/lambda-role"
  filename      = "processor.zip"
}

resource "aws_kinesis_firehose_delivery_stream" "http_stream" {
  name        = "http-delivery-stream"
  destination = "http_endpoint"

  http_endpoint_configuration {
    url      = "https://ingest.example.com/events"
    role_arn = "arn:aws:iam::123456789012:role/firehose-role"

    processing_configuration {
      enabled = true
      processors {
        type = "Lambda"
        parameters {
          parameter_name  = "LambdaArn"
          parameter_value = "${aws_lambda_function.processor.arn}"
        }
      }
    }
  }
}

This produces:

• a Firehose Stream Delivery object named http-delivery-stream with:
  • a callLink to an AWS Post Request object named https://ingest.example.com/events (its CAST_ResourceService.uri is set to the URL)
  • a callLink to a Call to AWS Lambda Function child object named http-firehose-processor

Example — Kinesis stream feeding Firehose with a Lambda processor and S3 destination

resource "aws_kinesis_stream" "raw_events" {
  name        = "raw-events"
  shard_count = 4
}

resource "aws_s3_bucket" "archive" {
  bucket = "events-archive"
}

resource "aws_lambda_function" "enricher" {
  function_name = "event-enricher"
  runtime       = "python3.11"
  handler       = "handler.enrich"
  role          = "arn:aws:iam::123456789012:role/lambda-role"
  filename      = "enricher.zip"
}

resource "aws_kinesis_firehose_delivery_stream" "delivery" {
  name        = "events-delivery"
  destination = "extended_s3"

  kinesis_source_configuration {
    kinesis_stream_arn = aws_kinesis_stream.raw_events.arn
    role_arn           = "arn:aws:iam::123456789012:role/firehose-role"
  }

  extended_s3_configuration {
    role_arn   = "arn:aws:iam::123456789012:role/firehose-role"
    bucket_arn = aws_s3_bucket.archive.arn

    processing_configuration {
      enabled = true
      processors {
        type = "Lambda"
        parameters {
          parameter_name  = "LambdaArn"
          parameter_value = "${aws_lambda_function.enricher.arn}:$LATEST"
        }
      }
    }
  }
}

This produces:

• a Kinesis Consumer object named raw-events with a callLink to the Firehose Stream Delivery named events-delivery
• a Firehose Stream Delivery object named events-delivery with:
  • a callLink to a Call to AWS Lambda Function child object named event-enricher
  • a useInsertLink to an AWS S3 Bucket object named events-archive

aws_api_gateway_rest_api and aws_api_gateway_resource / aws_api_gateway_method (API Gateway v1)

An API Gateway operation object (GET, POST, PUT, DELETE) is created for each aws_api_gateway_integration that references a Lambda function via uri. The path is resolved by walking the aws_api_gateway_resource chain up to the root. The API Gateway object is linked to the Lambda Function according to the single/multiple gateway rule described in Lambda triggers.

For instance, when analyzing the following source code:

resource "aws_lambda_function" "queue_worker" {
  function_name = "queue_worker"
  handler       = "index.handler"
  runtime       = "nodejs20.x"
  filename      = "lambda.zip"
  source_code_hash = filebase64sha256("lambda.zip")
  role          = aws_iam_role.lambda_role.arn
}

resource "aws_api_gateway_rest_api" "orders_api" {
  name = "orders-api"
}

resource "aws_api_gateway_resource" "orders" {
  rest_api_id = aws_api_gateway_rest_api.orders_api.id
  parent_id   = aws_api_gateway_rest_api.orders_api.root_resource_id
  path_part   = "path/to/orders"
}

resource "aws_api_gateway_method" "get_orders" {
  rest_api_id   = aws_api_gateway_rest_api.orders_api.id
  resource_id   = aws_api_gateway_resource.orders.id
  http_method   = "GET"
  authorization = "NONE"
}

resource "aws_api_gateway_integration" "get_orders_integration" {
  rest_api_id = aws_api_gateway_rest_api.orders_api.id
  resource_id = aws_api_gateway_resource.orders.id
  http_method = aws_api_gateway_method.get_orders.http_method
  type        = "AWS_PROXY"
  uri         = aws_lambda_function.api_handler.invoke_arn
}

Assuming that the javascript handler function is present in the analysis, you will get the following result

aws_apigatewayv2_api and aws_apigatewayv2_route / aws_apigatewayv2_integration (API Gateway v2)

An API Gateway operation object is created for each aws_apigatewayv2_route whose target resolves to an aws_apigatewayv2_integration that references a Lambda function. The HTTP method and path are extracted from route_key. The same single/multiple gateway linking rule applies as described in Lambda triggers.

For instance, when analyzing the following source code:

resource "aws_apigatewayv2_api" "products_api" {
  name          = "products-api"
  protocol_type = "HTTP"
}

resource "aws_apigatewayv2_integration" "products_integration" {
  api_id             = aws_apigatewayv2_api.products_api.id
  integration_type   = "AWS_PROXY"
  integration_uri    = aws_lambda_function.api_handler.invoke_arn
}

resource "aws_apigatewayv2_route" "get_products" {
  api_id    = aws_apigatewayv2_api.products_api.id
  route_key = "GET /path/to/products"
  target    = "integrations/${aws_apigatewayv2_integration.products_integration.id}"
}

aws_lambda_event_source_mapping

This resource maps a DynamoDB stream, SQS queue, or Kinesis Data Stream as a trigger for a Lambda function.

• When event_source_arn points to an SQS queue, an SQS Receiver object is created and linked to the Lambda Function with a direct callLink.
• When event_source_arn points to a DynamoDB table stream, a DynamoDB Trigger object is stored as a property on the Lambda Function (CAST_AWS_Lambda.dynamodb_events), as described in Lambda triggers.
• When event_source_arn points to a Kinesis Data Stream, a Kinesis Consumer object is created and linked to the Lambda Function with a direct callLink. Both resource references (aws_kinesis_stream.my_stream.arn) and hardcoded ARNs (arn:aws:kinesis:region:account:stream/stream-name) are supported; in the latter case the stream name is extracted from the ARN.

For instance when analyzing the following source code:

resource "aws_lambda_function" "my_fn" {
  function_name = "my_lambda_name"
  handler       = "index.handler"
  runtime       = "nodejs20.x"
  filename      = "lambda.zip"
  source_code_hash = filebase64sha256("lambda.zip")
  role          = aws_iam_role.lambda_role.arn
}

resource "aws_sqs_queue" "my_queue" {
  name = "my_queue_name"
}

resource "aws_dynamodb_table" "my_table" {
  name           = "my_table_name"
  stream_enabled = true
  stream_view_type = "NEW_AND_OLD_IMAGES"
}

resource "aws_lambda_event_source_mapping" "sqs_to_lambda" {
  event_source_arn = aws_sqs_queue.my_queue.arn
  function_name    = aws_lambda_function.my_fn.arn
}

resource "aws_lambda_event_source_mapping" "dynamo_to_lambda" {
  event_source_arn = aws_dynamodb_table.my_table.stream_arn
  function_name    = aws_lambda_function.my_fn.arn
}

you will get the following result

or when analyzing the following:

resource "aws_kinesis_stream" "orders" {
  name        = "orders-stream"
  shard_count = 2
}

resource "aws_lambda_function" "processor" {
  function_name = "stream-processor"
  runtime       = "python3.11"
  handler       = "handler.main"
  role          = "arn:aws:iam::123456789012:role/lambda-role"
  filename      = "processor.zip"
}

resource "aws_lambda_event_source_mapping" "kinesis_esm" {
  event_source_arn  = aws_kinesis_stream.orders.arn
  function_name     = aws_lambda_function.processor.arn
  starting_position = "TRIM_HORIZON"
}

This produces a Kinesis Consumer object named orders-stream with a callLink to the Lambda Function named stream-processor.

aws_sns_topic_subscription

This resource subscribes an endpoint to an SNS topic. The following protocols are supported: lambda, sqs, http, https, email, email-json, and sms.

For all protocols, an SNS Subscriber object is created named after the topic. The topic_arn can be either a resource reference (aws_sns_topic.my_topic.arn) or a hardcoded ARN string; in the latter case the topic name is extracted from the ARN. A callLink is drawn from the SNS Subscriber to a downstream object whose type depends on the protocol, as described in SNS subscriptions.

Protocol: lambda

The downstream object is an SNS Subscriber.

For instance, when analyzing the following source code

resource "aws_lambda_function" "my_fn" {
  function_name = "my_lambda_name"
  handler       = "index.handler"
  runtime       = "nodejs20.x"
  filename      = "lambda.zip"
  source_code_hash = filebase64sha256("lambda.zip")
  role          = aws_iam_role.lambda_role.arn
}

resource "aws_sns_topic" "my_topic" {
  name = "my_topic_name"
}

resource "aws_sns_topic_subscription" "sns_to_lambda" {
  topic_arn = aws_sns_topic.my_topic.arn
  protocol  = "lambda"
  endpoint  = aws_lambda_function.my_fn.arn
}

you will get the following result:

Protocol: sqs

The downstream object is a SQS Publisher object (for the queue) named as the queue name.

For example, when analyzing the following source code:

resource "aws_sns_topic" "my_topic" {
  name = "my_topic_name"
}

resource "aws_sqs_queue" "my_queue" {
  name = "my_queue_name"
}

resource "aws_sns_topic_subscription" "sns_to_sqs" {
  topic_arn = aws_sns_topic.my_topic.arn
  protocol  = "sqs"
  endpoint  = aws_sqs_queue.my_queue.arn
}

you will get the following result:

Protocols: http and https

The downstream object is an AWS Post Request, named after the endpoint URL. Its CAST_ResourceService.uri property is set to the URL.

Protocols: email and email-json

The downstream object is an AWS Email object named An Email. The actual email addresses are not evaluated.

Protocol: sms

The downstream object is an AWS SMS object named An SMS is created. The actual phone numbers are not evaluated.

aws_s3_bucket_notification

This resource configures event notifications on an S3 bucket. Three target types are supported: Lambda functions, SQS queues, and SNS topics.

• For each lambda_function block, an S3 Event is stored as a property on the Lambda Function (CAST_AWS_Lambda.s3_events), as described in S3 bucket events.
• For each queue block, an SQS Publisher object is created for the referenced SQS queue. The S3 bucket is recorded as the publisher’s source so that cross-technology links can be resolved, as described in S3 bucket events.
• For each topic block, an SNS Publisher object is created for the referenced SNS topic. The S3 bucket is recorded as the publisher’s source, as described in S3 bucket events.

For instance, when analyzing the following source code:

resource "aws_s3_bucket" "my_bucket" {
  bucket = "my_bucket_name"
}

resource "aws_lambda_function" "s3_handler" {
  function_name = "s3_handler"
  handler       = "index.handler"
  runtime       = "nodejs20.x"
  filename      = "lambda.zip"
  source_code_hash = filebase64sha256("lambda.zip")
  role          = aws_iam_role.lambda_role.arn
}

resource "aws_sns_topic" "my_topic" {
  name = "my_topic_name"
}

resource "aws_sqs_queue" "my_queue" {
  name = "my_queue_name"
}

resource "aws_s3_bucket_notification" "bucket_events" {
  bucket = aws_s3_bucket.my_bucket.id

  lambda_function {
    lambda_function_arn = aws_lambda_function.s3_handler.arn
    events              = ["s3:ObjectCreated:*"]
  }

  queue {
    queue_arn = aws_sqs_queue.my_queue.arn
    events    = ["s3:ObjectCreated:*"]
  }

  topic {
    topic_arn = aws_sns_topic.my_topic.arn
    events    = ["s3:ObjectCreated:*"]
  }
}

you will get the following result

count and for_each meta-arguments

Terraform’s count and for_each meta-arguments allow a single resource block to create multiple instances. The extension expands these into individual named Lambda Function objects.

count

resource "aws_lambda_function" "worker" {
  count         = 2
  function_name = "worker-${count.index}"
  runtime       = "python3.11"
  handler       = "app_${count.index}.handler"
}

Two Lambda Function objects are created: worker-0 and worker-1, with handlers app_0.handler and app_1.handler respectively. When another resource references one of these functions with a bracket index (e.g. aws_lambda_function.worker[0].arn), the reference is resolved to the matching instance.

for_each with a map

resource "aws_lambda_function" "handlers" {
  for_each      = { handler_a = "dist/a/index.handler", handler_b = "dist/b/index.handler" }
  function_name = each.key
  handler       = each.value
  runtime       = "nodejs20.x"
  role          = aws_iam_role.lambda_role.arn
}

Two Lambda Function objects are created: handler_a and handler_b, with handlers dist/a/index.handler and dist/b/index.handler respectively. Both each.key and each.value are resolved per instance.

If the count value or for_each expression cannot be resolved at analysis time (e.g. it references a Terraform variable with no default value), a single resource with the logical resource name is created as a fallback.

Minimal versions for proper linking

Many objects created by this extension may be linked with objects created by other extensions. However for these linkings to work, the minimal version required for these extensions is shown in the following table:

Known limitations

• Exports and imports are not supported
• Use of complex mapping key in YAML files is not supported and may lead to missing objects
• Custom resources are not supported in CloudFormation
• Filters in S3 event source for lambda are not supported and may lead to wrong links
• Inline source code for Lambda functions provided in CloudFormation or SAM configuration files is not supported:

      Code:
        ZipFile: |
          var aws = require('aws-sdk')
          var response = require('cfn-response')
          exports.handler = function(event, context) {
              //...
          }

• In Terraform, only count values that resolve to integer literals or Terraform variables with a numeric default are expanded; dynamic expressions (e.g. length(var.list)) fall back to a single instance
• In Terraform, for_each expressions are expanded only when the value is a toset([...]) call, an inline list ["a","b"], or an inline map { a = "x", b = "y" }; references to external variables or data sources fall back to a single instance
